Mixing Pump

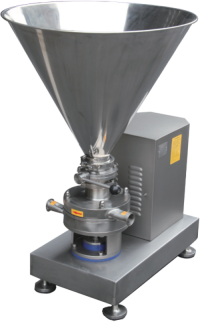

YAHH series pump is designed and developed by our company for

customers, this pump can uniform mix the powder and liquid materials

quickly. YAHH pump consist of feeding hopper valve, upper pump body, lower pump body, impeller, mechanical seal, connecting bracket, base

plate and motor. Liquid will produce negative pressure and inhale the

powder into the pump cavity through the hopper valve, powder and liquid mixing quickly under the effect of impeller centrifugal power and agitation, discharge the mixed fluid under the centrifugal power during the pump

running.

YAHH pump with simple structure, easy operation and maintenance, can meet on-line CIP and SIP.

Technical parameter

Applicable industries: Food, Beverage, Juice, Biological, Pharmaceutical, Dairy, Fructose, Wine, Vinegar, Soy sauce, Daily chemicals, Water treatment and so on.

Working conditions: Flow rate ≤30 m3/h, Head ≤ 30 m, Pressure ≤ 10 bar, Temperature ≤ 180℃

Mechanical seal: Single seal or Double mechanical seal with cooling water (silicon carbide/ graphite, silicon carbide/ silicon carbide, carbide/ cemented carbide)

Type of inlet and outlet: Union, Tri-clamp, Flange (ISO. DIN, SMS, IDF, RJT, GB)

Materials: 304(1.4301), 304L (1.4306), 316L (1.4404), EPDM, FPM, VMQ, NBR, etc.

Installation dimensions
