Description:

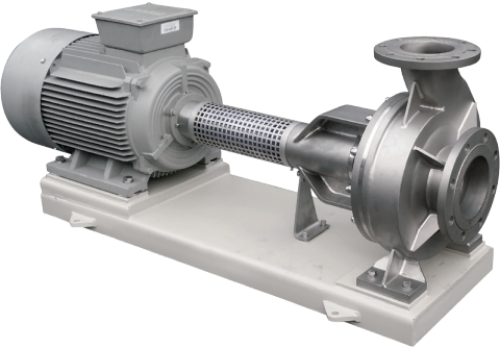

Design of high flow rate sanitary centrifugal pump

YPJ-160-15

YPJ series pump is customized designed and developed by our company for customers almost 20 years. The pump body is welded by thicker stainless steel under molding processing, smooth surface, no tiny pores and foundry defects. The pump cavity’s runner is optimal designed according to the fluid dynamics principle, which can make sure the material handing is smooth and steady, maximize reduce the warming effect of the materials, keep the steady and high efficiency during the pump working.

Pump shaft is made by special stainless steel with high strength, high hardness and high anti-corrosion. Connection part between pump body and motor is extended, because with this design the maintenance and replacement of mechanical seal is more easier, no need to take down the pipelines and remove the motor of the pump, just need to disassemble the middle connection part and replace the mechanical seal. After the replacement of the mechanical seal, the pump body and motor still in old location, so no

need adjust the pump’s concentricity, this can ensure the running condition is same with the previous condition as delivered from factory. Mechanical seal is external design, it is stable and more clean, fully meets the on line CIP and SIP. Yuanan YPJ series pump has become one of the first choice for the global customers in the high flow rate sanitary industries.

Technical parameter

Applicable industries: Food, Beverage, Juice, Biological, Pharmaceutical, Dairy, Fructose, Wine, Vinegar, Soy sauce, Daily chemicals, Water treatment and so on.

Working conditions: Flow rate ≤1400 m3/h, Head ≤35m, Pressure ≤ 12 bar, Temperature ≤ 180℃

Mechanical seal: Single seal or Double mechanical seal with cooling water ( silicon carbide/ graphite, silicon carbide/ silicon carbide, carbide/ cemented carbide)

Type of inlet and outlet: Flange (ISO. DIN, GB)

Materials: 304(1.4301), 304L (1.4306), 316L (1.4404), EPDM, FPM, VMQ, NBR, etc.

Motor and base plate: General, Frequency, Explosion-proof (voltage, speed, frequency optional), welding square pipe base plate or stainless steel bending closed base plate.

Installation dimensions

YPJ-160-26

尺寸 Size 功率 Power	A	B	C	D	E	F	G	H	I	J	K	L	M	N
7.5kw	315	285	137	250	212	920	1313	420	470	240	22	291	105	18
11kw	315	285	137	250	212	920	1408	420	470	240	22	291	105	18
15kw	315	285	137	250	212	920	1453	420	470	240	22	291	105	18

Installation dimensions

尺寸 Size 功率 Power	A	B	C	D	E	F	G	H	I	J	K	L	M	N
11kw	336	285	143.5	250	218.5	950	1408	420	470	240	22	325	105	18
15kw	336	285	143.5	250	218.5	950	1453	420	470	240	22	325	105	18
18.5kw	336	285	143.5	250	218.5	950	1478	420	470	240	22	325	105	18
