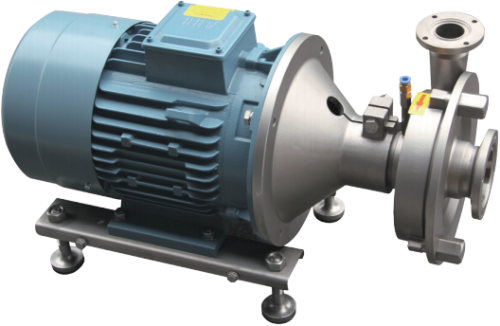

Design of high-efficiency pressure-proof sanitary centrifugal pump
|
YPE series pump is customized designed and developed by our company for customers. Normal used to evaporatior and ultrafiltration system,The advantages of the pump body is to using thicker stainless steel shaped by molding processing, high hardness, good strength, smooth surface, no tiny pores. The pump cavity’s runner is optimal designed |
according to the fluid dynamics principle, which can make sure the material handing is smooth and steady, maximize reduce the warming effect of the materials, keep the steady, high efficiency and good cavitation resistance during the pump working. Pump shaft is made by special stainless steel with high strength, high hardness and high anti-corrosion. |
Mechanical seal is classic internal design, it is very stable and reliable. The impeller is open type, which fully meets the on line CIP and SIP. Yuanan YPE series sanitary pump has become the best choice for the application of high vacuum negative pressure conditions.
Technical parameter
Applicable industries: Food, Beverage, Juice, Biological,Pharmaceutical,Dairy,Fructose, Wine, Vinegar, Soy sauce, Daily chemicals, Water treatment ,etc.
Working conditions: Flow rate 400 m3/h, Head ≤120m, Pressure ≤ 20 bar, Temperature ≤ 180℃
Mechanical seal: Single seal or Double mechanical seal with cooling water ( silicone carbide/ graphite, silicone carbide/ silicone carbide, carbide/ cemented carbide)
Type of inlet and outlet: Union, Tri-clamp, Flange (ISO. DIN, SMS,IDF, RJT, GB)
Materials: 304(1.4301), 304L(1.4306),316L(1.4404), EPDM, FPM,VMQ, NBR, etc.
Motor and Supporting foot: General, Frequency, Explosion-proof (voltage, speed, frequency optional), stainless steel adjustable supporting foot with insulation damping slice.
YPE-628 、YPE-832
|
尺寸 Size 功率 Power |
A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
K |
进口 Inlet (DN) |
出口 Outlet (DN) |
|
YPE 628-1.1kw |
38 |
132 |
33 |
182 |
185 |
424.5 |
125 |
200 |
100 |
33 |
55 |
40 |
40 |
|
YPE 832-1.5kw |
66.5 |
142 |
35 |
214 |
210 |
481.5 |
140 |
185 |
127 |
33 |
57.5 |
50 |
40 |
Note:
1. Dimension of C,J in this table is under Union standard connection, Clamp and Flange connection will be deviation under different situations, the exact dimensions are subject to the actual situation.
2. Dimension of F,H in this table is under general motor, Explosion- proof motor and frequency motor will be deviation under different situations, the exact dimensions are subject to the actual situation.
|
尺寸 Size 功率 Power |
A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
K |
进口 Inlet (DN) |
出口 Outlet (DN) |
|
YPE 2551-3kw |
49 |
172 |
35 |
203.5 |
300 |
358.5 |
160 |
260 |
130 |
33 |
98 |
50 |
40 |
|
YPE 2551-4kw |
49 |
152 |
35 |
203.5 |
300 |
533.5 |
190 |
260 |
130 |
33 |
98 |
50 |
40 |
Note:
1. Dimension of C,J in this table is under Union standard connection, Clamp and Flange connection will be deviation under different situations, the exact dimensions are subject to the actual situation.
2. Dimension of F,H in this table is under general motor, Explosion- proof motor and frequency motor will be deviation under different situations, the exact dimensions are subject to the actual situation.
